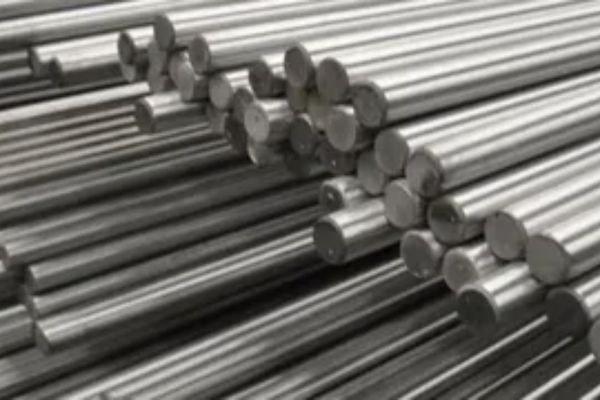

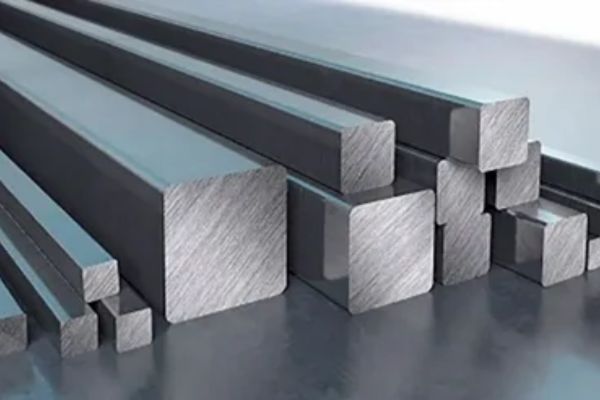

Aatir Steel stands out as a top manufacturer and supplier of Alloy Steel Bars right in Cairo, Egypt. We take pride in delivering high-quality steel products that are built for exceptional strength, durability, and performance. Our Alloy Steel Bars are specifically designed to handle tough industrial conditions, boasting impressive hardness, toughness, and wear resistance. With cutting-edge technology and rigorous quality control, Aatir Steel guarantees precise dimensions and consistent mechanical properties. These bars find their place in various sectors, including engineering, automotive, construction, and manufacturing, providing reliable and long-lasting solutions for critical components that demand outstanding strength, fatigue resistance, and operational efficiency in high-stress settings.
Our Alloy Steel Bars are crafted from a blend of carbon, manganese, chromium, nickel, and molybdenum, achieving the perfect mix of hardness, toughness, and tensile strength. They feature mechanical properties like tensile strength between 850–1000 MPa, yield strength around 600 MPa, and elongation of 15–20%. These bars excel in fatigue resistance, impact toughness, and wear resistance, making them ideal for challenging industrial applications. Plus, they can be heat-treated to boost hardness and mechanical performance, ensuring they remain durable and reliable even in high-stress environments.
| Specifications | ASTM A182, ASME SA182 |
|---|---|
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Range | 5mm to 500mm Dia in 100mm to 6000mm Length |
| Diameter | 10 mm To 200 mm |
| Thickenss | 0.5mm to 500mm Diameter |
| High Speed Steel (HSS), HCHCR & OHNS in Grade | M2, M3, M35, M42, T-1, T-4, T-15, T-42, D2, D3, H11, H13, OHNS-01 & EN52 |
| Finish | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Length | 1000 mm Long To 6000 mm Long |
| Form | Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc. |
Alloy Steel Rods ASTM Specification
| Internal Standard | EN | DIN | SAE/AISI |
|---|---|---|---|
| EN 18 | EN 18 | 37Cr4 | 5140 |
| EN 19 | EN 19 | 42Cr4Mo2 | 4140/4142 |
| EN 24 | EN 24 | 34CrNiMo6 | 4340 |
| EN 353 | EN 353 | – | – |
| EN 354 | EN 354 | – | 4320 |
| SAE 8620 | EN 362 | – | SAE 8620 |
| EN 1 A | EN 1 A | 9SMn28 | 1213 |
| SAE 1146 | EN 8M | – | SAE 1146 |
| EN 31 | EN 31 | 100Cr6 | SAE 52100 |
| EN 45 | EN 45 | 55Si7 | 9255 |
| EN 45A | EN 45A | 60Si7 | 9260 |
| 50Crv4 | EN 47 | 50CrV4 | 6150 |
| SAE 4130 | – | 25CrMo4 | SAE 4130 |
| SAE 4140 | – | 42CrMO4 | SAE 4140 |
| 20MNCR5 | – | – | – |
| Element | C | Cr | Mn | Mo | P | S | Si | Ni |
|---|---|---|---|---|---|---|---|---|
| F5 | 0.15 Max | 4.0-6.0 | 0.30-0.60 | 0.44-0.65 | 0.035 Max | 0.030 Max | 0.50 Max | 0.50 Max |
| F1 | 0.15 Max | 3.0-5.0 | 0.30-0.60 | 0.40-0.50 | 0.035 Max | 0.030 Max | 0.50 Max | 0.50 Max |
| F22 | 0.05-0.15 | 2.00-2.50 | 0.30-0.60 | 0.90-1.10 | 0.035 Max | 0.040 Max | 0.50 Max | – |
| F91 | 0.08-0.12 | 8.0-9.5 | 0.30-0.60 | 0.85-1.05 | 0.020 Max | 0.010 Max | 0.20-0.50 | 0.40 Max |
| F9 | 0.15 Max | 8.0-10.0 | 0.30-0.60 | 0.90- 1.10 | 0.030 Max | 0.030 Max | 0.50- 1.00 | – |
| 42CrMo4 | 0.380 – 0.45 % | 0.90 – 1.20 % | 0.60 – 0.90 % | 0.15 – 0.30 % | ≤ 0.035 % | ≤ 0.035 % | – | – |
| F11 | 0.10-0.20 | 1.00-1.50 | 0.40-0.65 | 0.44-0.65 | 0.025 Max | 0.040 Max | 0.50-0.80 | – |
| Properties | Conditions | ||
|---|---|---|---|
| T (°C) | Treatment | ||
| Density (×1000 kg/m3) | 7.7-8.03 | 25 | |
| Elastic Modulus (GPa) | 190-210 | 25 | |
| Tensile Strength (Mpa) | 1158 | 25 | oil quenched, fine grained, tempered at 425°C |
| Yield Strength (Mpa) | 1034 | ||
| Reduction in Area (%) | 53 | ||
| Hardness (HB) | 335 | 25 | oil quenched, fine grained, tempered at 425°C |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| SIZE IN INCHES | ROUND | SQUARE | OCTAGON | HEXAGON | SIZE IN INCHES | ROUND | SQUARE | OCTAGON | HEXAGON |
| 1/16 | .010 | .013 | .011 | .012 | 11/16 | 1.262 | 1.607 | 1.333 | 1.392 |
| 5/64 | .017 | .022 | .018 | .019 | 45/64 | 1.320 | 1.681 | 1.394 | 1.456 |
| 3/32 | .023 | .029 | .024 | .025 | 23/32 | 1.380 | 1.756 | 1.487 | 1.521 |
| 7/64 | .031 | .039 | .033 | .034 | 47/64 | 1.440 | 1.834 | 1.521 | 1.588 |
| 1/8 | .042 | .053 | .044 | .046 | 3/4 | 1.502 | 1.913 | 1.586 | 1.656 |
| 9/64 | .053 | .067 | .056 | .058 | 25/32 | 1.630 | 2.075 | 1.721 | 1.797 |
| 5/32 | .065 | .083 | .069 | .072 | 13/16 | 1.763 | 2.245 | 1.862 | 1.944 |
| 11/64 | .079 | .100 | .083 | .087 | 27/32 | 1.901 | 2.421 | 2.008 | 2.096 |
| 3/16 | .094 | .120 | .099 | .104 | 7/8 | 2.045 | 2.603 | 2.159 | 2.254 |
| 13/64 | .110 | .140 | .116 | .121 | 29/32 | 2.193 | 2.792 | 2.316 | 2.418 |
| 7/32 | .128 | .163 | .135 | .141 | 15/16 | 2.347 | 2.988 | 2.479 | 2.588 |
| 15/64 | .147 | .187 | .155 | .162 | 31/32 | 2.506 | 3.191 | 2.646 | 2.763 |
| 1/4 | .167 | .213 | .176 | .184 | 1 | 2.670 | 3.400 | 2.820 | 2.945 |
|---|---|---|---|---|---|---|---|---|---|
| 17/64 | .188 | .240 | .199 | .207 | 1-1/16 | 3.015 | 3.838 | 3.183 | 3.324 |
| 9/32 | .211 | .269 | .223 | .233 | 1-1/8 | 3.380 | 4.303 | 3.569 | 3.727 |
| 19/64 | .235 | .300 | .248 | .259 | 1-3/16 | 3.766 | 4.795 | 3.977 | 4.152 |
| 5/16 | .261 | .332 | .275 | .288 | 1-1/4 | 4.172 | 5.313 | 4.407 | 4.601 |
| 21/64 | .288 | .360 | .304 | .318 | 1-5/16 | 4.600 | 5.857 | 4.858 | 5.072 |
| 11/32 | .316 | .402 | .334 | .348 | 1-3/8 | 5.049 | 6.428 | 5.332 | 5.567 |
| 23/64 | .345 | .439 | .364 | .381 | 1-7/16 | 5.518 | 7.026 | 5.827 | 6.085 |
| 3/8 | .376 | .478 | .397 | .414 | 1-1/2 | 6.008 | 7.650 | 6.345 | 6.625 |
| 25/64 | .408 | .519 | .431 | .450 | 1-9/16 | 6.519 | 8.301 | 6.885 | 7.189 |
| 13/32 | .441 | .561 | .466 | .486 | 1-5/8 | 7.051 | 8.978 | 7.446 | 7.775 |
| 27/64 | .475 | .605 | .502 | .524 | 1-11/16 | 7.604 | 9.682 | 8.030 | 8.385 |
| 7/16 | .511 | .651 | .540 | .564 | 1-3/4 | 8.178 | 10.41 | 8.634 | 9.018 |
| 29/64 | .548 | .698 | .579 | .604 | 1-13/16 | 8.773 | 11.17 | 9.265 | 9.673 |
| 15/32 | .587 | .747 | .620 | .647 | 1-7/8 | 9.388 | 11.95 | 9.911 | 10.35 |
| 31/64 | .627 | .798 | .662 | .692 | 1-15/16 | 10.02 | 12.76 | 10.58 | 11.05 |
| 1/2 | .668 | .850 | .705 | .736 | 2 | 10.68 | 13.60 | 11.28 | 11.78 |
| 33/64 | .710 | .904 | .750 | .783 | 2-1/16 | 11.36 | 14.46 | 11.99 | 12.53 |
| 17/32 | .754 | .960 | .796 | .831 | 2-1/8 | 12.06 | 15.35 | 12.73 | 13.30 |
| 35/64 | .799 | 1.017 | .844 | .881 | 2-3/16 | 12.78 | 16.27 | 13.49 | 14.09 |
| 9/16 | .845 | 1.076 | .892 | .932 | 2-1/4 | 13.52 | 17.21 | 14.27 | 14.91 |
| 37/64 | .893 | 1.136 | .943 | .985 | 2-5/16 | 14.28 | 18.18 | 15.08 | 15.75 |
| 19/32 | .941 | 1.199 | .994 | 1.038 | 2-3/8 | 15.06 | 19.18 | 15.91 | 16.61 |
| 39/64 | .992 | 1.263 | 1.048 | 1.094 | 2-7/16 | 15.87 | 20.20 | 16.75 | 17.49 |
| 5/8 | 1.043 | 1.328 | 1.102 | 1.150 | 2-1/2 | 16.69 | 21.25 | 17.62 | 18.40 |
| 41/64 | 1.096 | 1.395 | 1.207 | 1.209 | 2-9/16 | 17.53 | 22.33 | 18.52 | 19.34 |
| 21/32 | 1.150 | 1.464 | 1.214 | 1.268 | 2-5/8 | 18.40 | 23.43 | 19.43 | 20.29 |
| 43/64 | 1.205 | 1.535 | 1.272 | 1.329 | 2-11/16 | 19.29 | 24.56 | 20.37 | 21.27 |
Alloy Steel Bars are essential in industries that need high-strength, durable, and dependable components. In the automotive world, they’re used to make shafts, gears, axles, and crankshafts. The engineering and construction sectors rely on them for heavy machinery parts, structural components, and industrial equipment. They also play a crucial role in power generation, oil and gas, and tool manufacturing, where mechanical strength, toughness, and wear resistance are vital. With Alloy Steel Bars, you get a long service life, consistent performance, and cost-effective solutions for applications that require superior strength, durability, and reliability.
Aatir Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Cairo, Egypt.
