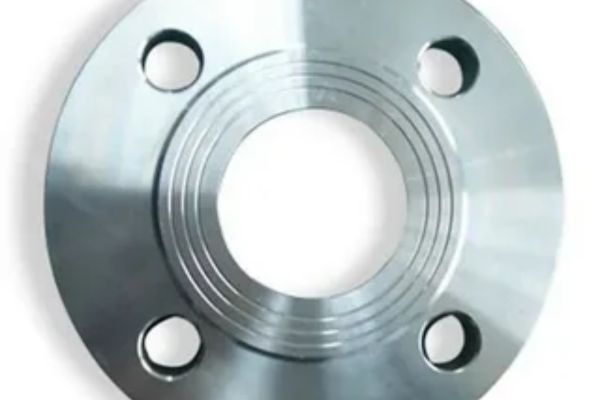

Aatir Steel, a prominent manufacturer and supplier located in Cairo, Egypt, is all about high-quality Alloy Steel F9 Flanges. These flanges are designed to deliver exceptional strength, durability, and performance, especially in tough industrial settings. With a reputation for precision manufacturing and a commitment to international standards, Aatir Steel guarantees that every F9 Flange performs reliably, even under high pressure and extreme temperatures. They’re perfect for critical applications in industries like oil and gas, petrochemicals, power generation, and heavy machinery. Focusing on quality, longevity, and safety, Aatir Steel’s Alloy Steel F9 Flanges have earned the trust of engineers and industries throughout Egypt and beyond.
The Alloy Steel F9 Flanges from Aatir Steel are crafted from a blend of carbon, chromium, molybdenum, and nickel, providing an ideal mix of strength, hardness, and resistance to corrosion. They boast impressive tensile strength, yield strength, and toughness, ensuring they hold up well in extreme conditions. Thanks to precision heat treatment, these flanges are durable, stable in size, and resistant to fatigue, making them perfect for critical industrial piping and mechanical connections that need to last.
Alloy Steel Flanges Specification : ASTM A182 / ASME SA182
Dimension Standard : ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size : 1/2″ (15 NB) to 48″ (1200NB)
Class / Pressure : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
DIN Flanges : DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673.
JIS Flanges : JIS B2220 5K, JIS B2220 10K, JIS B2220 16K, JIS B2220 20K
BS Flanges : BS4504 PN 6, BS 4504 PN 10, BS4504 PN 16, BS4504 PN 25, BS4504 PN 40, BS 4504 PN 64, BS 4504 PN 100, BS 4504 PN 160, BS 4504 PN 250, BS 10, BS Table D, BS Table E, BS Table F, BS Table H.
| Grade | C | Mn | P | S | Si | Ni | Ch | Mo | Cb |
|---|---|---|---|---|---|---|---|---|---|
| F9 | 0.15 | 0.30-0.60 | 0.030 | 0.030 | 0.50-1.00 | – | 8.0-10.0 | 0.90-1.10 | – |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
|---|---|---|---|---|---|
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| F9 | 585 | 380 | 20 | – | 179-217 |
| STANDARD | UNS | WERKSTOFF NR. |
|---|---|---|
| Alloy Steel F9 | K90941 | 1.7386 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
|
Pipe Normal Diam. |
O.D. Flange |
Thk. Of Flange Min |
Diam.
of
Hub |
Diameter of Raised Face |
Length Hub.Y |
Thread Length |
Diam.
of Bolt
Circle |
Diam.
of Bolt
Holes |
Number
of Bolts |
Diam. of
Bolts
(inch) |
KG |
LB |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
inch |
dn |
O |
C |
X |
G |
Y |
T |
BC |
BH |
BN |
BD |
||
|
1/2″ |
15 |
89.00 |
11.20 |
30.20 |
35.10 |
15.70 |
15.70 |
60.50 |
15.80 |
4 |
1/2″ |
0.4 |
0.9 |
|
3/4″ |
20 |
98.50 |
12.70 |
38.10 |
42.90 |
15.70 |
15.70 |
69.90 |
15.80 |
4 |
1/2″ |
0.7 |
1.5 |
|
1″ |
25 |
108.00 |
14.20 |
49.30 |
50.80 |
17.50 |
17.50 |
79.30 |
15.80 |
4 |
1/2″ |
0.8 |
1.8 |
|
1-1/4″ |
32 |
117.50 |
15.70 |
58.70 |
63.50 |
20.60 |
20.60 |
88.90 |
15.80 |
4 |
1/2″ |
1.2 |
2.6 |
|
1-1/2″ |
40 |
127.00 |
17.50 |
65.00 |
73.20 |
22.40 |
22.40 |
98.60 |
15.80 |
4 |
1/2″ |
1.5 |
3.3 |
|
2″ |
50 |
152.50 |
19.10 |
77.70 |
91.90 |
25.40 |
25.40 |
120.70 |
19.10 |
4 |
5/8″ |
2.3 |
5.1 |
|
2-1/2″ |
65 |
178.00 |
22.40 |
90.40 |
104.60 |
28.40 |
28.40 |
139.70 |
19.10 |
4 |
5/8″ |
3.7 |
8.1 |
|
3″ |
80 |
190.50 |
23.90 |
108.00 |
127.00 |
30.20 |
30.20 |
152.40 |
19.10 |
4 |
5/8″ |
4.1 |
9 |
|
3-1/2″ |
90 |
216.00 |
23.90 |
122.20 |
139.70 |
31.80 |
31.80 |
177.80 |
19.10 |
8 |
5/8″ |
5.1 |
11.2 |
|
4″ |
100 |
228.50 |
23.90 |
134.90 |
157.20 |
33.30 |
33.30 |
190.50 |
19.10 |
8 |
5/8″ |
5.9 |
13 |
|
5″ |
125 |
254.00 |
23.90 |
163.60 |
185.70 |
36.60 |
36.60 |
215.90 |
22.40 |
8 |
3/4″ |
7 |
15.4 |
|
6″ |
150 |
279.50 |
25.40 |
192.00 |
215.90 |
39.60 |
39.60 |
241.30 |
22.40 |
8 |
3/4″ |
8.4 |
18.5 |
|
8″ |
200 |
343.00 |
28.40 |
246.10 |
269.70 |
44.50 |
44.50 |
298.50 |
22.40 |
8 |
3/4″ |
13 |
28.6 |
|
10″ |
250 |
406.50 |
30.20 |
304.80 |
323.90 |
49.30 |
49.30 |
362.00 |
25.40 |
12 |
7/8″ |
18 |
39.5 |
|
12″ |
300 |
482.50 |
31.80 |
365.30 |
381.00 |
55.60 |
55.60 |
431.80 |
25.40 |
12 |
7/8″ |
29 |
64 |
|
14″ |
350 |
533.50 |
35.10 |
400.10 |
412.80 |
57.20 |
57.20 |
476.30 |
28.50 |
12 |
1″ |
39 |
86 |
|
16″ |
400 |
597.00 |
36.60 |
457.20 |
469.90 |
63.50 |
63.50 |
539.80 |
28.50 |
16 |
1″ |
47 |
103 |
|
18″ |
450 |
635.00 |
39.60 |
505.00 |
533.40 |
68.30 |
68.30 |
577.90 |
31.80 |
16 |
1 1/8″ |
57 |
126 |
|
20″ |
500 |
698.50 |
42.90 |
558.80 |
584.20 |
73.20 |
73.20 |
635.00 |
31.80 |
20 |
1 1/8″ |
76 |
167 |
|
24″ |
600 |
813.00 |
47.80 |
663.40 |
692.20 |
82.60 |
82.60 |
749.30 |
35.10 |
20 |
1 1/4″ |
97 |
214 |
Aatir Steel is a top manufacturer and supplier of high-quality Alloy Steel F9 Flanges products in Cairo, Egypt. Specializing in steel solutions, we provide a wide range of products, including Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel. Our offerings include Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates. Known for our reliable delivery and superior customer service, we are committed to offering top-tier steel materials that ensure durability and performance across a wide range of industrial applications. We strive to meet the highest standards, making us a trusted partner for all your steel needs.
You’ll find Alloy Steel F9 Flanges used in pipelines, pressure vessels, chemical processing plants, petrochemical industries, power generation equipment, and heavy machinery assemblies. Their outstanding mechanical properties make them a go-to choice for high-pressure, high-temperature, and corrosive environments, ensuring secure and leak-proof connections. They’re also utilized in marine, oil and gas, and industrial fabrication applications where resistance to wear, stress, and temperature changes is crucial. Aatir Steel’s F9 Flanges deliver reliable performance, helping to cut down on maintenance costs while boosting operational safety and efficiency.
