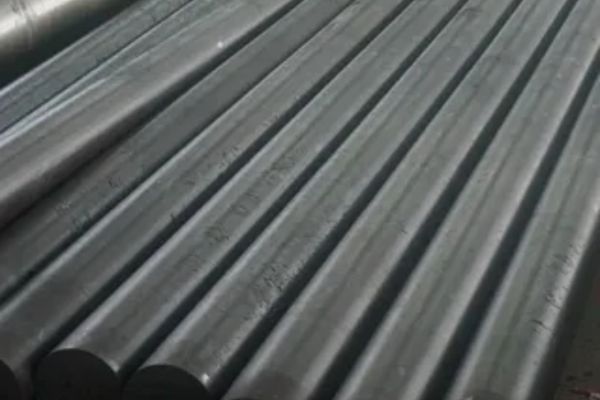

Aatir Steel, located in Cairo, Egypt, has earned a solid reputation as a reliable manufacturer and supplier of top-notch Carbon Steel A105 Bars. With a strong focus on precision engineering and ensuring customer satisfaction, Aatir Steel caters to a diverse array of industries both locally and internationally. Their A105 bars are crafted to meet global quality standards, guaranteeing durability, performance, and cost-effectiveness. Thanks to cutting-edge manufacturing technology and strict quality control measures, Aatir Steel has established itself as a dependable source for Carbon Steel A105 Bars, which are essential in demanding industrial applications like oil and gas, petrochemical, and power generation.
These Carbon Steel A105 Bars are primarily made up of carbon, manganese, and silicon, with small amounts of sulfur and phosphorus. They boast impressive mechanical properties, such as high tensile strength, good yield strength, and exceptional toughness. Typically, A105 bars have a minimum tensile strength of 485 MPa and a minimum yield strength of 250 MPa. They also offer good machinability and weldability. When heat-treated, A105 bars can further boost their mechanical performance, making them suitable for high-pressure and high-temperature environments where strength and durability are critical.
| Standard | ASTM A105, ASME SA105 |
|---|---|
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Round bar Size | Diameter: 3-~800mm |

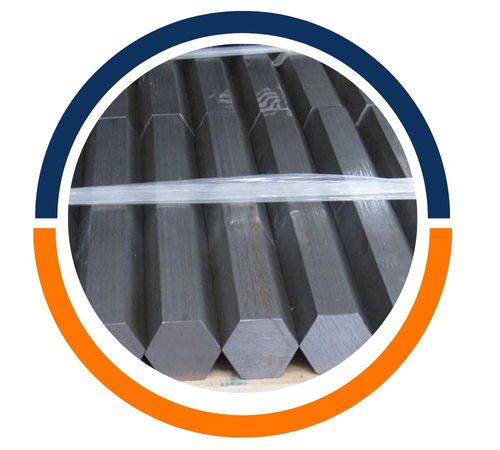

| Hex Bar Size | 2-100mm A/F |

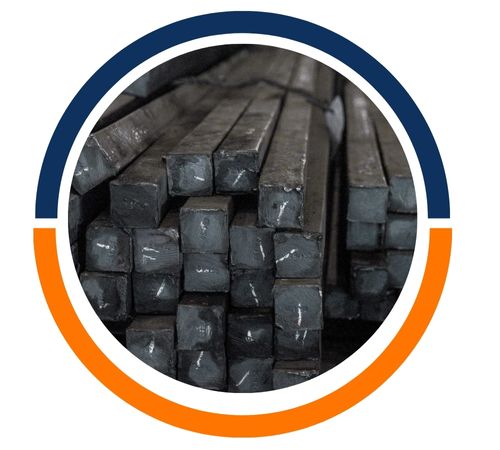

| Square Bar Size | 4 to 100mm |
| Angle Bar Size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Rectangular Bars Section | 3.0 to 12.0mm thickness |
| Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |

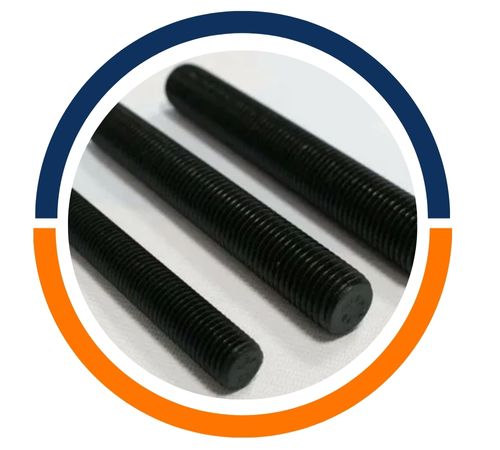

| Threaded Bar Billet Size | 1/2 to 495mm Diameter |

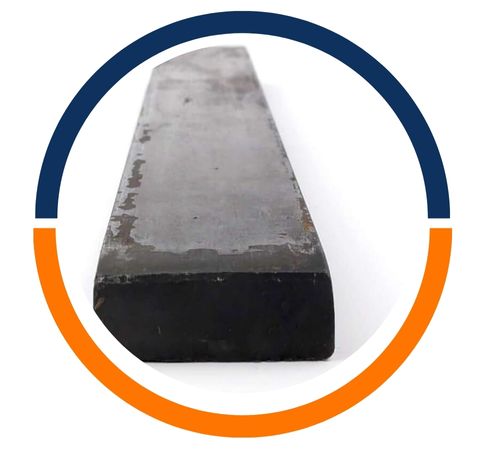

| Rectangular Size | 33 x 30mm to 295 x 1066mm |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Condition | Hardened & tempered, annealed |
| Technique | Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Processing | Bar cutting to 650mm |
| Form | Round, Rod, T-Bar, Channel Bar, Precision Ground Bar, Square, Blocks, Round Rod, Rings, Hollow, Triangle, Rectangle, Hex (A/F), Threaded, Half Round Bar, Profiles, Billet, Ingot, I/H Bar, Forging etc. |
| Grade | C | Si | Mn | P | S | Mo | Ni | Cr | Cu | V |
| A105 | 0.35 | 0.10–0.35 | 0.60–1.05 | 0.035 | 0.040 | 0.12 | 0.40 | 0.30 | 0.40 | 0.08 |
| Grade | Yield Strength, Min (MPa ) | Tensile Strength, Min (MPa) | Elongation, min, % |
| A105 | 250 | 485 | 30 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Jaxon Steel is a trusted manufacturer and supplier of high-quality Carbon Steel A105 Bars in Cairo, Egypt. We specialize in premium steel products, including Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our extensive inventory also includes Pipes, Tubes, Flanges, Forged Fittings, Sheets, and Plates. Committed to fast delivery and exceptional customer service, we use only the finest raw materials to ensure superior strength, durability, and performance in critical industrial applications.
| ASTM A105 Round Bar Equivalent | ||
|---|---|---|
| STANDARD | UNS | WERKSTOFF NR. |
| ASTM A105 | K03504 | – |
| US Bar | Metric | Japanese | Canadian/ASTM | ||||
| Diameter(Inch) | Carbon Steel A105 Bar Size | Diameter (millimeter) | Carbon Steel A105 Bar Size | Diameter (millimeter) | Carbon Steel A105 Bar Size | Diameter (millimeter2) | Carbon Steel A105 Bar Size |
| 0.250 | #2 | 5 | 5 | 6 | 6 | 100 | 10M |
| 0.375 | #3 | 5.5 | 5.5 | 10 | 10 | 200 | 15M |
| 0.500 | #4 | 6 | 6 | 13 | 13 | 300 | 20M |
| 0.625 | #5 | 7 | 7 | 16 | 16 | 500 | 25M |
| 0.750 | #6 | 8 | 8 | 19 | 19 | 700 | 30M |
| 0.875 | #7 | 9 | 9 | 22 | 22 | 1000 | 35M |
| 1.000 | #8 | 10 | 10 | 25 | 25 | 1500 | 45M |
| 1.125 | #9 | 11 | 11 | 29 | 29 | 2500 | 55M |
| 1.250 | #10 | 12 | 12 | 32 | 32 | ||
| 1.375 | #11 | 14 | 14 | 35 | 35 | ||
| 1.500 | #12 | 16 | 16 | 38 | 38 | ||
| 1.625 | #13 | 18 | 18 | 41 | 41 | ||
| 1.750 | #14 | 20 | 20 | 44 | 44 | ||
| 1.875 | #15 | 22 | 22 | 48 | 48 | ||
| 2.000 | #16 | 25 | 25 | 51 | 51 | ||
| 2.250 | #18 | 28 | 28 | 57 | 57 | ||
| 32 | 32 | ||||||
| 36 | 36 | ||||||
| 40 | 40 | ||||||
| 44 | 44 | ||||||
| 50 | 50 | ||||||
| Diameter in inch | Size in inch/MM | Weight Lbs/ft & Kg/M |
| 1/16 | 0.0625 1.5875 | 0.010 / 0.01488 |
| 1/8 | 0.125 3.175 | 0.042 / 0.062496 |
| 3/32 | 0.0938 2.38252 | 0.0240 / 0.035712 |
| 5/32 | 0.1563 3.97002 | 0.065 / 0.09672 |
| 7/32 | 0.2188 5.55752 | 0.128 / 0.190464 |
| 3/16 | 0.1875 4.7625 | 0.094 / 0.139872 |
| 1/4 | 0.25 6.35 | 0.167 / 0.248496 |
| 5/16 | 0.3125 7.9375 | 0.260 / 0.38688 |
| 9/32 | 0.2813 7.14502 | 0.211 / 0.313968 |
| 3/8 | 0.375 9.525 | 0.376 / 0.559488 |
| 1/2 | 0.5 12.7 | 0.668 / 0.993984 |
| 7/16 | 0.4375 11.1125 | 0.512 / 0.761856 |
| 9/16 | 0.5625 14.2875 | 0.844 / 1.255872 |
| 11/16 | 0.6875 17.4625 | 1.264 / 1.880832 |
| 5/8 | 0.625 15.875 | 1.043 / 1.551984 |
| 3/4 | 0.75 19.05 | 1.502 / 2.234976 |
| 7/8 | 0.875 22.225 | 2.045 / 3.04296 |
| 13/16 | 0.8125 20.6375 | 1.761 / 2.620368 |
| 15/16 | 0.9375 23.8125 | 2.35 / 3.4968 |
| 1 1/16 | 1.0625 26.9875 | 3.012 / 4.481856 |
| 1 | 1 25.4 | 2.671 / 3.974448 |
| 1 1/8 | 1.125 28.575 | 3.38 / 5.02944 |
| 1 1/4 | 1.25 31.75 | 4.173 / 6.209424 |
| 1 3/16 | 1.1875 30.1625 | 3.77 / 5.60976 |
| 1 5/16 | 1.3125 33.3375 | 4.598 / 6.841824 |
Due to their strength, durability, and wear resistance, Carbon Steel A105 Bars are widely utilized across various industries. In the oil and gas sector, they are often found in flanges, fittings, valves, and other pressure-containing components. Power plants and petrochemical facilities rely on A105 bars for high-temperature piping systems, pressure vessels, and structural elements. Their ability to endure high stress makes them perfect for heavy-duty industrial applications. Additionally, they are a popular choice in general engineering and construction projects where dependable performance under mechanical stress and temperature fluctuations is essential.
