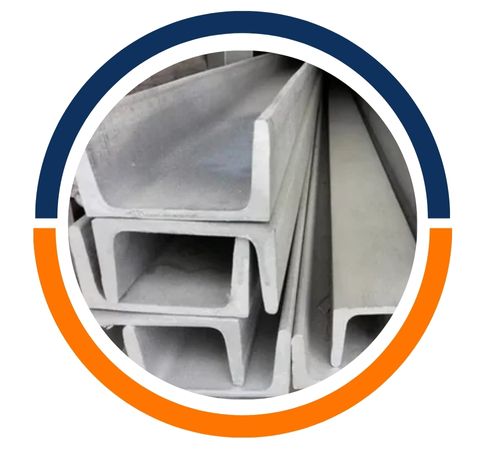

Aatir Steel is a reputable manufacturer and supplier of Carbon Steel EN Series Channels, proudly based in Cairo, Egypt. The company focuses on crafting high-quality structural steel products that deliver outstanding strength, durability, and precision. These channels are expertly designed to offer excellent load-bearing capacity and dimensional stability, making them perfect for construction, fabrication, and heavy engineering projects. By using top-notch EN Series carbon steels, Aatir Steel guarantees that each channel adheres to international standards for mechanical performance, surface finish, and reliability. Their products are well-known for their consistent quality and are suitable for a wide range of industrial and structural applications.
Carbon Steel EN Series Channels are made up of carbon, manganese, silicon, sulfur, and phosphorus, all mixed in controlled amounts based on the EN grade (like EN8, EN9, EN19, EN24, etc.). These elements work together to provide exceptional tensile strength, toughness, and machinability. The channels boast impressive mechanical properties, with tensile strength typically falling between 500–850 MPa and yield strength ranging from 250–650 MPa, depending on the specific grade. They also offer good wear resistance, hardness, and heat-treating capabilities, making them versatile for various industrial uses.
| Specifications | : | ASTM |
| Dimensions | : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Carbon Steel En Series Angle | : | 5mm to 9mm |
| Carbon Steel En Series Channel | : | 40mm*20mm~300mm*300mm |
| Carbon Steel En Series Beam | : | 3″ thru 12.31″ |
| Carbon Steel En Series Chain | : | 1/8 inch – 1/2 inch Diameter |
| Thickness | : | 3.0mm – 120mm |
| Length | : | 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes |
| Type | : | Angle, C Channel, U Channel, H Beam, I Beam, T Beam, W Beam, Chain |
| Grade | ||||||
| C% | Si% | Mn% | Cr% | Mo% | W% | |
| EN-1A | 0.007 TO 0.15 | 0.10 | 0.80 TO 1.00 | S | P | – |
| 0.20 TO 0.30 | 0.70 MAX | |||||
| EN-8 | 0.35 TO 0.45 | 0.05 TO 0.30 | 0.60 TO 1.00 | S | P | – |
| 0.06 MAX | 0.06 MAX | |||||
| EN-9 | 0.50 TO 0.60 | 0.05 TO 0.30 | 0.5 TO 0.80 | – | – | – |
| EN-19(V 320) | 0.35 TO 0.45 | 0.10 TO 0.30 | 0.5 TO 0.80 | 0.90 TO 1.40 | 0.20 TO 0.40 | |
| EN-24(V 130) | 0.35 TO 0.45 | 0.10 TO 0.35 | 0.45 TO 0.70 | 0.90 TO 1.40 | 0.20 TO 0.35 | NI |
| 1.3 TO 1.8 | ||||||
| EN-31 R-100 | 0.90 TO 1.20 | 0.10 TO 0.35 | 0.30 TO 0.75 | 1.00 TO 1.60 | – | – |
| EN-36C E-200 | 0.12 TO 0.18 | 0.10 TO 0.35 | 0.30 TO 0.60 | 0.60 TO 1.10 | – | NI |
| 3.0 TO 3.75 | ||||||
| EN-42 | 0.70 TO 0.85 | 0.10 TO 0.40 | 0.55 TO 0.75 | – | – | – |
| EN-44 | 0.90 TO 1.20 | 0.30 | 0.45 TO 0.70 | – | – | – |
| EN-45 F-110 | 50 TO 0.60 | 1.5 TO 2.0 | 0.70 TO 1.00 | – | – | – |
| EN-351 | 0.10 TO 0.20 | 0.35 | 0.60 TO 1.00 | 0.40 to 0.80 | 0.08 to 0.10 | NI |
| 0.60 TO 1.00 | ||||||
| EN-353 | 0.10 TO 0.20 | 0.35 | 0.50 TO 1.00 | 0.75 TO 1.25 | 0.08 to o.15 | NI |
| 1.00 TO 1.50 |
| Grade | HEAT TREATMENT | CORRESPONDING SPECIFICATION | |||||
| Hardening Temperature | Quenching Medium | Tempering Temperature | Brinell Rock well hardness | JAPAN JIS | AISI | POLDI THREAD | |
| EN-1A | – | – | – | – | – | – | – |
| EN-8 | 750-900 | OIL | 150-200 | ||||
| EN-9 | 850-900 | OIL | 200-250 | 55-60 | |||
| EN-19 (V 320) | 900-950 | OIL | 200-225 | 45-55 | SCM 4 | 4140 | |
| EN-24 (V 130) | 830-860 | OIL | 540-680 | 45-55 | SNCM 8 | 4340 | |
| EN-31 R-100 | 820-860 | OIL | 180-225 | 59-65 | |||
| EN-36C E-200 | 780-860 | OIL | 170-210 | 61-63 | SNC 22 | 3415 | |
| EN-42 | 600-700 | DIRECT HARDENING | 40-45 | ||||
| EN-44 | 650-750 | OIL | 150 | 45-50 | |||
| EN-45 | 830-860 | OIL | 470-520 | 50-55 | 9255 | ||
| EN-351 | 850-860 | OIL | 175-200 | 62-64 | |||
| EN-353 | 840-870 | OIL | 150-200 | 62-64 | |||
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Carbon Steel EN Series Channel is a trusted manufacturer and supplier of high-quality EN Series Carbon Steel Channels in Cairo, Egypt. We specialize in premium steel products, with a focus on EN Series Carbon Steel, known for its excellent strength, durability, and versatility across various industrial applications. Our extensive inventory also includes Pipes, Tubes, Flanges, Forged Fittings, and Bars to meet diverse industry needs. Committed to fast delivery and outstanding customer service, we use only the finest raw materials to ensure superior performance and reliability. Contact us today for all your EN Series Carbon Steel Channel requirements!
You’ll find Carbon Steel EN Series Channels commonly used in construction, automotive manufacturing, machinery parts, shipbuilding, bridges, and heavy equipment frameworks. They play a crucial role in structural assemblies, supporting beams, and fabrication tasks that require both strength and dimensional accuracy. Their durability and flexibility make them ideal for load-bearing and reinforcement applications. Aatir Steel’s Carbon Steel EN Series Channels are designed for high performance and longevity, ensuring reliable support and structural integrity across a variety of industrial sectors.
