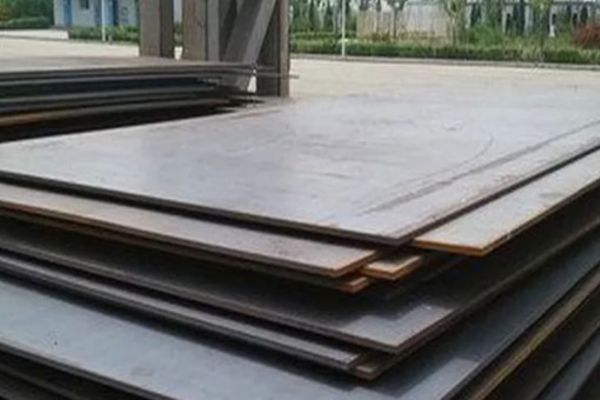

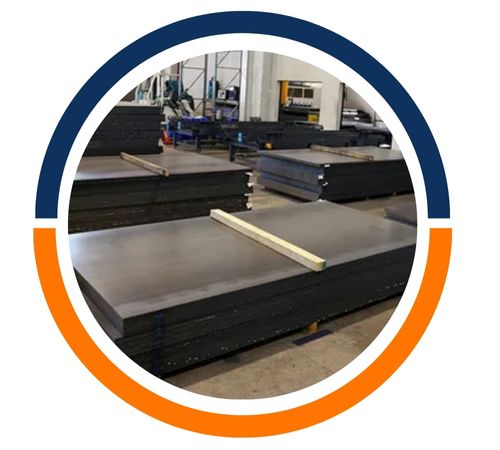

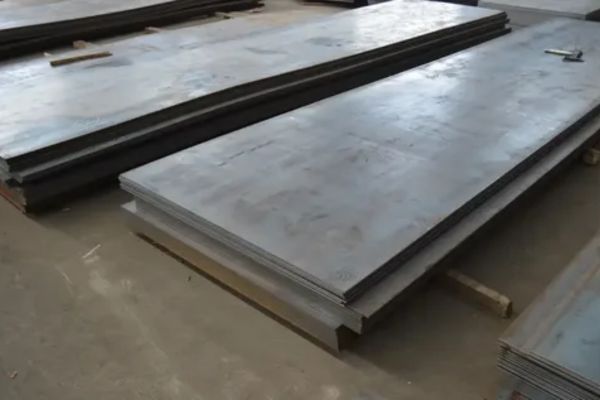

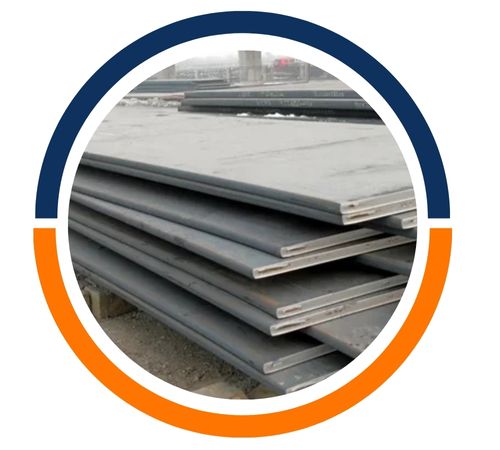

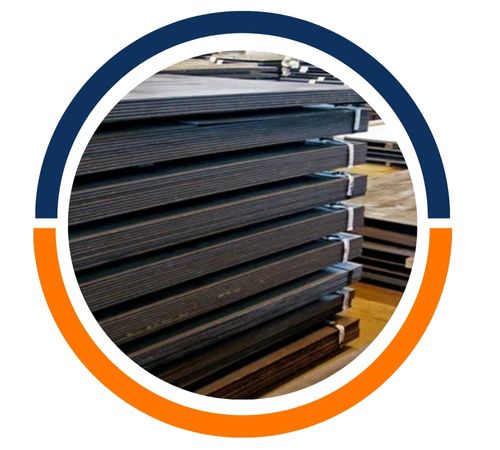

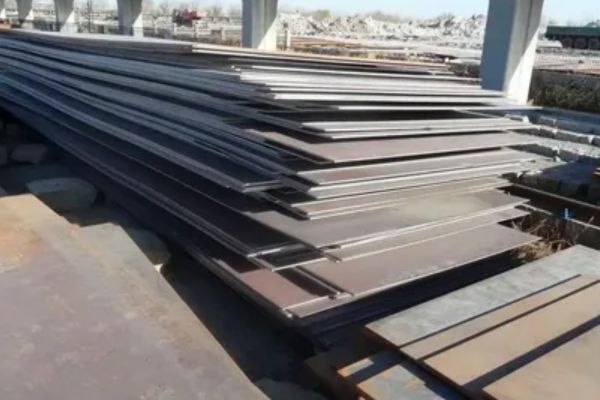

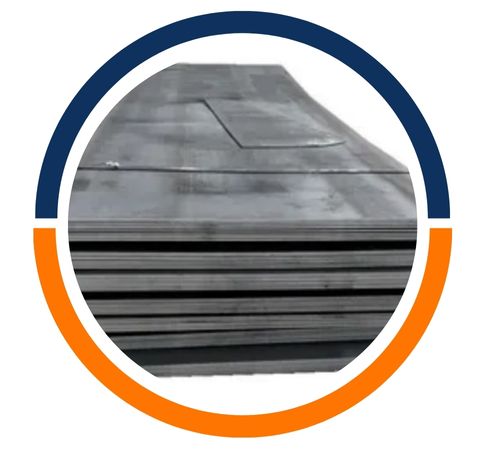

Aatir Steel stands out as a top manufacturer and supplier located in Cairo, Egypt, with a focus on high-quality **SAE 1045 Steel Sheets and Plates**. Renowned for its precision engineering and exceptional manufacturing standards, the company offers medium-carbon steel sheets and plates that are built for outstanding strength, toughness, and durability. These SAE 1045 Steel Sheets and Plates are crafted to meet international standards, guaranteeing reliability and long-lasting performance in even the most demanding industrial settings. Aatir Steel caters to various industries, including construction, machinery, automotive, and manufacturing, providing sturdy materials for structural components, mechanical assemblies, and fabrication projects where high tensile strength, wear resistance, and operational efficiency are crucial.
The **SAE 1045 Steel Sheets and Plates** primarily consist of 0.43–0.50% carbon, 0.60–0.90% manganese, along with trace amounts of sulfur and phosphorus. This specific composition results in good hardness, strength, and moderate ductility. On a mechanical level, SAE 1045 showcases high tensile and yield strength, excellent impact resistance, and commendable wear resistance. The medium-carbon content allows for effective heat treatment, enhancing hardness and toughness while still maintaining machinability and formability, making it perfect for heavy-duty structural and mechanical applications.
| Specification | ASTM A830 AISI 1045, SAE 1045, |
| Grade | SAE J403 Grade 1045 |
| Condition | hot rolled or normalized |
| Width | 200 to 2000mm |
| Thickness | 6 to 800mm |
| Length | 2000 to 6000mm |
| Heat treated method | By flame or induction |
| MN | FE | S | C | P |
|---|---|---|---|---|
| 0.60 – 0.90% | 98.51 – 98.98% | ≤ 0.050% | 0.420 – 0.50% | ≤ 0.040% |
| MECHANICAL PROPERTIES | ||
|---|---|---|
| Metric | Imperial | |
| Tensile Strength, Ultimate | 565 MPa | 81,900 PSI |
| Tensile Strength, Yield | 310 MPa | 45,000 PSI |
| Modulus of Elasticity | 200 GPa | 29,000 KSI |
| Hardness, Brinell | 163 | 163 |
| Elongation at Break (in 50 mm) | 16.0% | 16.0% |
| Bulk Modulus (Typical for Steel) | 140 GPa | 20,300 KSI |
| Poissons Ratio | 0.290 | 0.290 |
| Shear Modulus | 80 GPa | 11,600 KSI |
| Grade | EU EN | DIN,WNr | JIS | AFNOR | BS | GOST | ISO | UNS |
| 1045 | C45E (1.1191) | Ck45 | S45C | XC45 XC48H1 | 080M46 CFS8 | 45 | C45E4 | G10450 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Length x Width | Thickness |
|---|---|
| mm | mm |
| 2000 x 1000 | 0.8 |
| 2440 x 1220 | 1.0 |
| 2500 x 1250 | 0.9 |
| 2500 x 1250 | 0.8 |
| 2000 x 1000 | 1.20 |
| 2000 x 1000 | 1.0 |
| 2000 x 1000 | 0.9 |
| 1830 x 1220 | 1.0 |
| 2500 x 1250 | 1.20 |
| Thickness | Length x Width | Mass per Sq m |
|---|---|---|
| mm | mm | Kg/m2 |
| 30.00 | 2000 x 1000 | 235.50 |
| 30.00 | 4000 x 2000 | 235.50 |
| 30.00 | 2500 x 1250 | 235.50 |
| 30.00 | 5000 x 2500 | 235.50 |
| 30.00 | 3000 x 1500 | 235.50 |
| 30.00 | 5000 x 1250 | 235.50 |
| 40.00 | 2000 x 1000 | 314.00 |
| 32.00 | 2000 x 1000 | 251.20 |
| 30.00 | 10000 x 2500 | 235.50 |
| 30.00 | 6000 x 2500 | 235.50 |
| 32.00 | 2500 x 1250 | 251.20 |
| 32.00 | 3000 x 1500 | 251.20 |
| 32.00 | 5000 x 2500 | 251.20 |
| 32.00 | 4000 x 2000 | 251.20 |
| 35.00 | 3000 x 1500 | 274.75 |
| 35.00 | 4000 x 2000 | 274.75 |
| 35.00 | 2500 x 1250 | 274.75 |
| 40.00 | 2500 x 1250 | 314.00 |
| 40.00 | 3000 x 1500 | 314.00 |
| 40.00 | 4000 x 2000 | 314.00 |
These **SAE 1045 Steel Sheets and Plates** are extensively utilized in industries that demand durable, medium-carbon steel materials. They are particularly well-suited for shafts, gears, bolts, machinery parts, construction frameworks, and industrial equipment. With their excellent wear resistance, tensile strength, and toughness, these sheets and plates ensure reliable performance under high-stress conditions. Their blend of mechanical strength and machinability makes them ideal for fabrication, heat treatment, and precision engineering tasks. SAE 1045 Steel Sheets and Plates play a vital role in supporting safe, efficient operations across automotive, machinery, construction, and industrial sectors.
