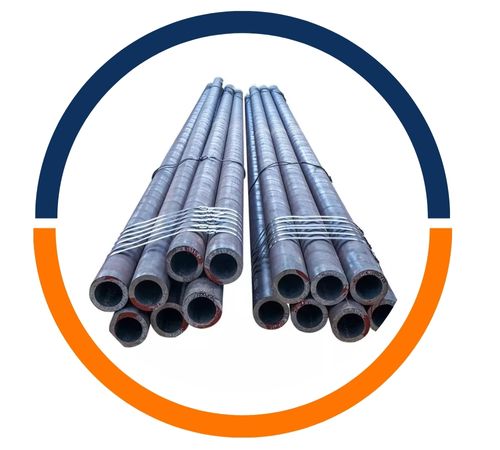

Aatir Steel stands out as a top manufacturer and supplier of 16Mo3 Pipes in Cairo, Egypt. We pride ourselves on providing high-quality alloy steel pipes that excel under high temperatures and pressure. Our 16Mo3 Pipes are a go-to choice in industries like power generation, petrochemicals, and refineries, where strength and heat resistance are crucial. Crafted with precision and rigorously tested to meet international standards, these pipes offer outstanding durability, corrosion resistance, and reliability. At Aatir Steel, we’re committed to delivering top-notch piping solutions that guarantee a long service life and consistent performance, even in the toughest industrial settings.
16Mo3 Pipes are low-alloy steel pipes made up of carbon (0.12–0.20%), manganese (0.40–0.90%), molybdenum (0.25–0.35%), silicon (0.35%), along with small amounts of phosphorus and sulfur. The addition of molybdenum boosts their strength at high temperatures and enhances their corrosion resistance. These pipes boast impressive mechanical properties, including a tensile strength ranging from 450–600 MPa, a yield strength of about 280 MPa, and an elongation of roughly 22%. They are perfect for pressure-bearing equipment that operates at elevated temperatures, ensuring they remain durable and structurally sound under stress.
| 16Mo3 Pipes Specifications | ASTM A335 / ASME SA335 |
|---|---|
| Dimensional specification | ANSI/ASME B36.19M, ANSI/ASME B36.10M |
| ASTM A335 16Mo3 Seamless Pipe Size | 1 / 2″ NB – 16″ NB |

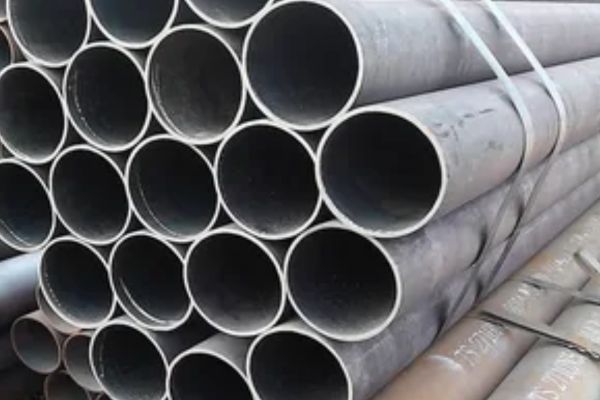

| ASTM A335 16Mo3 Welded Pipe Size | 1 / 2″ NB – 24″ NB |

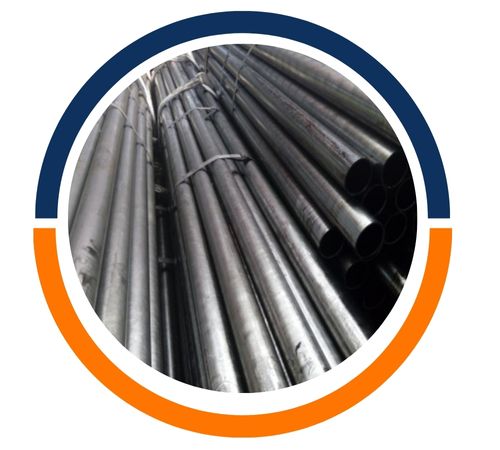

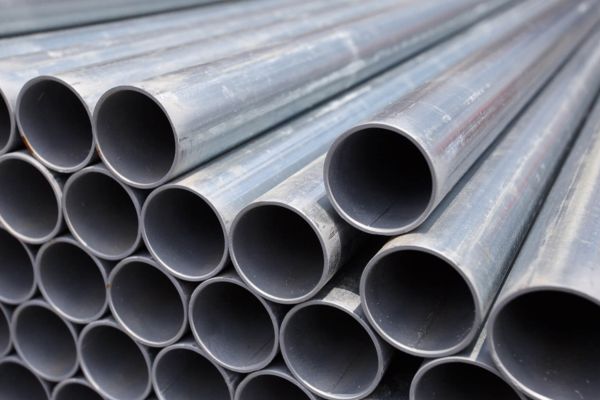

| ASTM A335 16Mo3 EFW Pipe Size | 6″ NB – 24″ NB |
| Outside Diameter | 6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB available Ex-stock, OD Size Steel Tubes available Ex-stock |
| Chrome Moly 16Mo3 Pipes Manufacturing Shapes | Hydraulic, Round, Rectangle, Square, Hex, Honed |
| Alloy Steel 16Mo3 Pipe Manufacturing Techniques | Seamless / Welded / ERW / Fabricated / CDW / 100% X Ray Welded |
| Alloy Steel 16Mo3 Pipe Schedule Thickness Range | SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |
| Chrome Moly 16Mo3 Pipes End Types | Plain End, Beveled End, Treaded One End, TBE (Treaded Both Ends) |
| Delivery Condition of Alloy Steel 16Mo3 Pipe | Annealed and Pickled, Polished, Bright Annealed, Cold Drawn |
| Surface Finish | No.1, No.4, No.8 Mirror Finish, 2B |
| Value Added Services | Cutting, Beveling, Polishing, Threading, Destructive, Non Destructive, Ultrasonic Testing |
| Inspection and Test Reports | EN 10204 3.1, Mill Test Certificates, Chemical Reports, PMI Test Reports, Mechanical Reports, Third Party Inspection, NABL Approved Lab, Visual Inspection, Destructive Test and Non Destructive Test Reports |
| Marking | Specification Grade Nominal Pipe Sizes Pipe Schedule or Wall Thickness Manufacturing Method (Seamless / Welded) Heat Number Manufacturer’s Name or Custom Logo – on request Marked Pipe Sample: ANSI B36.19 ASTM A 335 16Mo3 12″ NB SCH 40S SEAMLESS HEAT NO. XXXX |
| Outside Finish | 2B, No.4, No.1, No.8 Mirror Finish for Alloy Steel Pipes, Finish as per customer Requirements |
| Delivery Condition | Annealed and Pickled, Polished, Bright Annealed, Cold Drawn |
| Packing of Chrome Moly 16Mo3 Pipes | Packed in Wooden Boxes, Plastic Bags, Steel Strips Bundled, or as per Customers Requests |
| Specials | Sizes and Specifications other than above can be on request |
| 16MO3 | C | Mn | S | N | Cu | Si | P | Cr | Ni | Mo |
| 0.12- 0.2 | 0.40- 0.90 | 0.01 | 0.012 | 0.30 | 0.35 | 0.025 | 0.30 | 0.30 | 0.25- 0.35 |
| 16Mo3 | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation in 100-150 mm(%) | Elongation in 16 mm(%) | Max Thickness (mm) |
| 440-590 | 220-275 | 19 | 24 | 250 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Aatir Steel is a major manufacturer and a supplier of premium 16Mo3 Pipes in Cairo, the Egypt. With specialization in steel solutions, we offer a variety of products including carbon steel, alloy steel, light steel and galvanized steel. Our wide bearing has pipes, pipes, flanges, pipe fittings, forged fittings, sheets and plates. We are famous for our reliable distribution and extraordinary customer service, and are committed to offering high quality steel materials that ensure durability and better performance in different industrial applications. We are committed to skill, and we are your reliable partners for all steel requirements.
|
DIN,WNr |
BS |
UNI |
ISO |
DIN | UNS |
|
16Mo3 |
240 |
16Mo3 |
P26 |
1.5415 | K11562 |
|
243 |
TS26 |
| Product Description | Outside Diamter, OD (in mm) | Wall Thickness, WT (in mm)> |
|---|---|---|

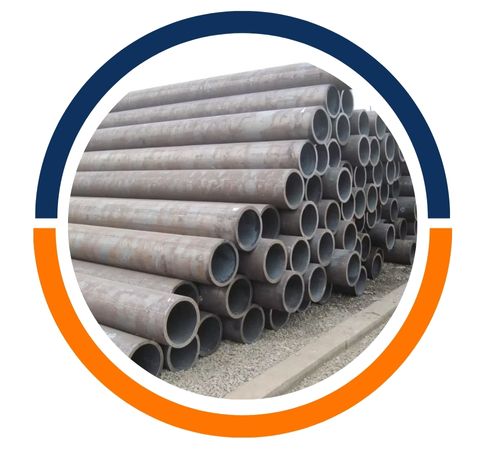

| 16Mo3 Alloy Steel Round Pipe | 6mm – 630mm | 0.5mm-30mm |
| 16Mo3 Alloy Steel Square Pipe | 12.7mm* 12.7mm to 300mm* 300mm | 0.5mm-30mm |

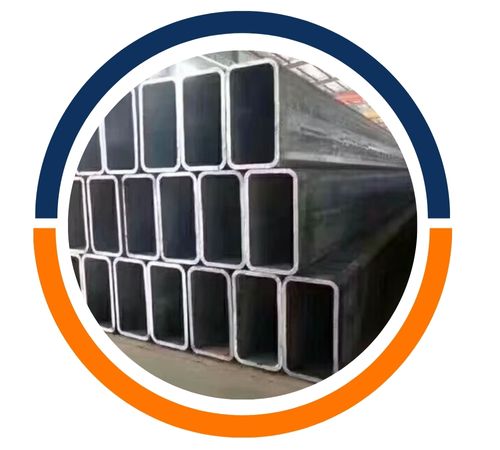

| 16Mo3 Alloy Steel Rectangular Pipe | 10*20mm to 100*200mm | 0.5mm-30mm |
| 16Mo3 Alloy Steel Colour Coated Pipe | 6mm to 630mm | 0.5mm-30mm |
| 16Mo3 Alloy Steel Ornamental Pipes | 12.7mm to 76.2mm | 0.5mm-2.0mm |

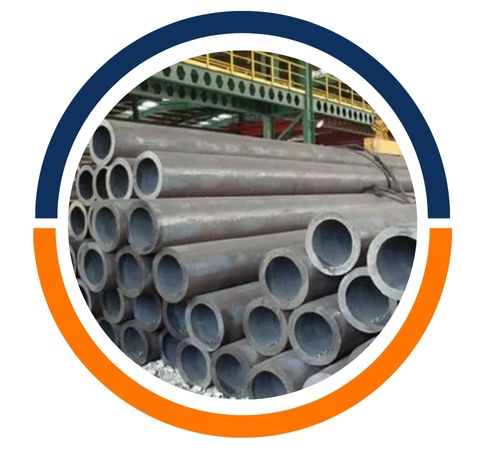

| 16Mo3 Alloy Steel Electropolished Pipes | 12.7mm to 250mm | 0.5mm-30mm |
| 16Mo3 Alloy Steel Slot Round Pipe | 12.7mm to 76.2mm | 0.5mm-2.0mm |
| 16Mo3 Alloy Steel Triangle Pipe | 16mm to 85mm | 0.5mm-3.0mm |
| 16Mo3 Alloy Steel Hexagonal Pipes | 13mm to 85mm | 0.5mm-2.0mm |
| 16Mo3 Thin-Wall Alloy Steel Pipes | 22mm*0.7mm to 108mm*2.0mm | 0.5mm-2.0mm |
| 16Mo3 Inner/Outside Polished Alloy Steel Pipes | 12.5mm to 203.2mm | 1.0mm – 5mm |

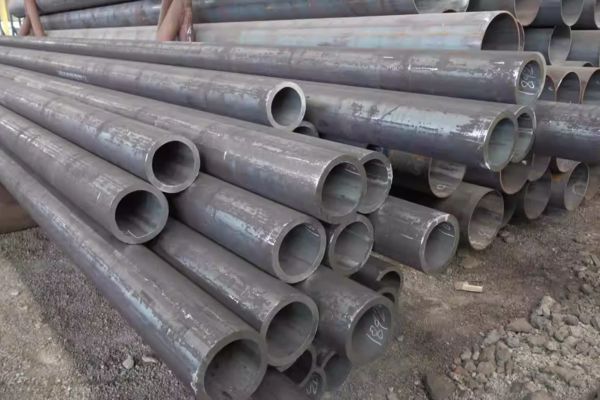

| 16Mo3 Alloy Steel Seamless Pipes | 6mm to 430mm | 0.8mm – 30mm |
| Cold Drawn | Outside Diameter, mm | Tolerance | – |
|---|---|---|---|
| outer diameter ≤ 114 | ± 10% or ± 0.2mm | – | |
| Hot rolled | Outside Diameter, mm | Tolerance | WT/outer diameter |
| outer diameter ≤ 219.1 | ± 12.5% or ± 0.4mm | WT/outer diameter ≤ 2.5% | |
| 2.5% ＜ WT/outer diameter ≤ 5% | |||
| 5% ＜ WT/outer diameter ≤ 10% | |||
| WT/outer diameter > 10% | |||
| outer diameter > 219.1 | ± 20% | WT/outer diameter ≤ 2.5% | |
| ± 15% | 2.5% ＜ WT/outer diameter ≤ 5% | ||
| ± 12.5% | 5% ＜ WT/outer diameter ≤ 10% | ||
| ± 10% | WT/outer diameter > 10% |
In various industries that demand materials capable of handling high temperatures and pressures, 16Mo3 Pipes are widely used. They play a vital role in the construction of boilers, heat exchangers, superheaters, and pressure vessels. The power generation sector relies on them for steam lines and turbine systems, while the petrochemical and refinery industries utilize them for transporting hot gases and fluids. Thanks to their excellent mechanical and thermal stability, they are also well-suited for chemical processing plants and oil and gas operations. Ultimately, 16Mo3 Pipes are essential for ensuring safety, efficiency, and reliability in high-temperature industrial applications.
