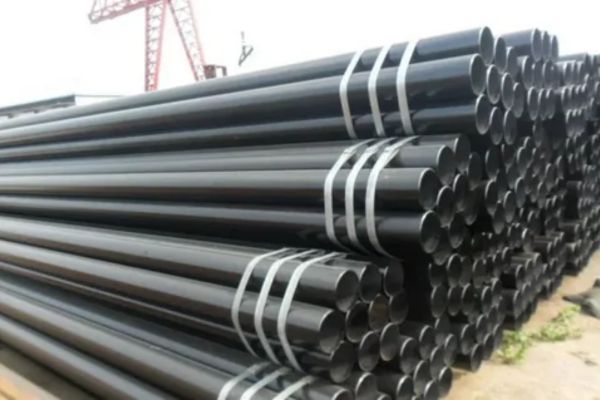

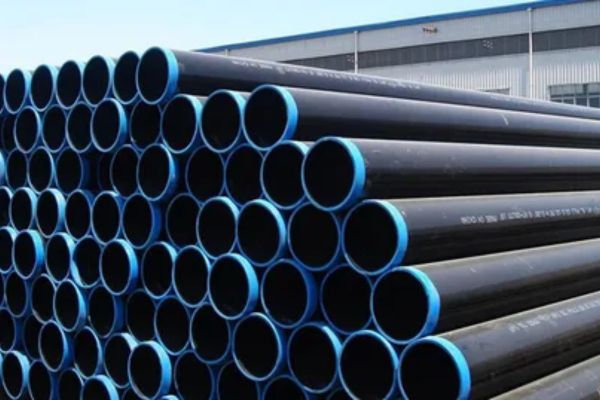

Aatir Steel, a top-notch manufacturer and supplier based in Cairo, Egypt, specializes in high-quality Carbon Steel JIS G3454 Pipes that adhere to the Japanese Industrial Standard (JIS G3454). These pipes are designed for exceptional strength, durability, and dependable performance across mechanical, structural, and fluid transport applications. Crafted using both seamless and welded methods, Aatir Steel’s JIS G3454 Pipes guarantee precise dimensions, smooth surfaces, and outstanding mechanical properties. They are extensively utilized in the industrial, petrochemical, and construction sectors, offering cost-effective and long-lasting solutions for pipelines, pressure systems, and structural components that demand high-quality carbon steel performance.
The Carbon Steel JIS G3454 Pipes are primarily composed of iron, with a carbon content ranging from 0.15% to 0.30%, along with manganese (0.30% to 1.20%) and trace amounts of silicon, sulfur, and phosphorus. This blend results in remarkable strength, toughness, and machinability. Typically, these pipes boast a tensile strength of 400–580 MPa and a yield strength of 245–355 MPa, ensuring they perform reliably under high stress and pressure. They also exhibit good elongation (≥15%), resistance to deformation, and dimensional stability, making them perfect for piping, structural, and mechanical applications where precision and durability are crucial.
| Standard | : | JIS G3454 |
| JIS G3454 Grade | : | STPG 410, STPG 370 |
| JIS G3454 Outer Dimensions | : | 6mm – 150mm |
| JIS G3454 Wall Thickness | : | 1.0mm – 20 mm THK |
| JIS G3454 | Elongation % | ||||
|---|---|---|---|---|---|
| C | Si | Mn | P | S | |
| STPG 370 | 0.25 max. | 0.35 max. | 0.30 to 0.90 | 0.040 max. | 0.040 max. |
| STPG 410 | 0.30 max. | 0.35 max. | 0.30 to 1.00 | 0.040 max. | 0.040 max. |
| JIS G3454 | Tensile strength | Yield point or proof stress | Elongation % | |||
|---|---|---|---|---|---|---|
| kgf/mm2 {N/mm2} | kgf/mm2 {N/mm2} | No.11 and No.12 test pieces | No. 5 test pieces | No. 4 test piece | ||
| Longitudinal | Transverse | Longitudinal | Transverse | |||
| STPG 370 | 38 {373}min | 22{216} min | 30 min | 25 min | 23 min | 28 min |
| STPG 410 | 42{412}min | 25{245} min | 25 min | 20 min | 19 min | 24 min |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Jaxon Steel is a trusted manufacturer and supplier of high-quality Carbon Steel JIS G3454 Pipe products in Cairo, Egypt. Specializing in premium steel materials, we offer a comprehensive range of products, including Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our extensive inventory includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. With a strong focus on timely delivery and exceptional customer service, Jaxon Steel ensures the supply of top-grade materials that provide superior performance in various industrial applications. Trust Jaxon Steel for all your Carbon Steel JIS G3454 Pipe needs.
| Permissible Specified Outside Diameter and Specified Wall Thickness | ||
Specified Outside Diameter D mm (in.) | Specified Wall Thickness t mm (in.) | |
| Special Light Sizes a | Regular Sizes | |
| ≥ 10.3 (0.405) to < 13.7 (0.540) | — | ≥ 1.7 (0.068) to ≤ 2.4 (0.094) |
| ≥ 13.7 (0.540) to < 17.1 (0.675) | — | ≥ 2.2 (0.088) to ≤ 3.0 (0.118) |
| ≥ 17.1 (0.675) to < 21.3 (0.840) | — | ≥ 2.3 (0.091) to ≤ 3.2 (0.125) |
| ≥ 21.3 (0.840) to < 26.7 (1.050) | — | ≥ 2.1 (0.083) to ≤ 7.5 (0.294) |
| ≥ 26.7 (1.050) to < 33.4 (1.315) | — | ≥ 2.1 (0.083) to ≤ 7.8 (0.308) |
| ≥ 33.4 (1.315) to < 48.3 (1.900) | — | ≥ 2.1 (0.083) to ≤ 10.0 (0.394) |
| ≥ 48.3 (1.900) to < 60.3 (2.375) | — | ≥ 2.1 (0.083) to ≤ 12.5 (0.492) |
| ≥ 60.3 (2.375) to < 73.0 (2.875) | ≥ 2.1 (0.083) to ≤ 3.6 (0.141) | > 3.6 (0.141) to ≤ 14.2 (0.559) |
| ≥ 73.0 (2.875) to < 88.9 (3.500) | ≥ 2.1 (0.083) to ≤ 3.6 (0.141) | > 3.6 (0.141) to ≤ 20.0 (0.787) |
| ≥ 88.9 (3.500) to < 101.6 (4.000) | ≥ 2.1 (0.083) to ≤ 4.0 (0.156) | > 4.0 (0.156) to ≤ 22.0 (0.866) |
| ≥ 101.6 (4.000) to < 168.3 (6.625) | ≥ 2.1 (0.083) to ≤ 4.0 (0.156) | > 4.0 (0.156) to ≤ 25.0 (0.984) |
| ≥ 168.3 (6.625) to < 219.1 (8.625) | ≥ 2.1 (0.083) to ≤ 4.0 (0.156) | > 4.0 (0.156) to ≤ 40.0 (1.575) |
| ≥ 219.1 (8.625) to < 273.1 (10.750) | ≥ 3.2 (0.125) to ≤ 4.0 (0.156) | > 4.0 (0.156) to ≤ 40.0 (1.575) |
| ≥ 273.1 (10.750) to < 323.9 (12.750) | ≥ 3.6 (0.141) to ≤ 5.2 (0.203) | > 5.2 (0.203) to ≤ 45.0 (1.771) |
| ≥ 323.9 (12.750) to < 355.6 (14.000) | ≥ 4.0 (0.156) to ≤ 5.6 (0.219) | > 5.6 (0.219) to ≤ 45.0 (1.771) |
| ≥ 355.6 (14.000) to < 457 (18.000) | ≥ 4.5 (0.177) to ≤ 7.1 (0.281) | > 7.1 (0.281) to ≤ 45.0 (1.771) |
| ≥ 457 (18.000) to < 559 (22.000) | ≥ 4.8 (0.188) to ≤ 7.1 (0.281) | > 7.1 (0.281) to ≤ 45.0 (1.771) |
| ≥ 559 (22.000) to < 711 (28.000) | ≥ 5.6 (0.219) to ≤ 7.1 (0.281) | > 7.1 (0.281) to ≤ 45.0 (1.771) |
| ≥ 711 (28.000) to < 864 (34.000) | ≥ 5.6 (0.219) to ≤ 7.1 (0.281) | > 7.1 (0.281) to ≤ 52.0 (2.050) |
| ≥ 864 (34.000) to < 965 (38.000) | — | ≥ 5.6 (0.219) to ≤ 52.0 (2.050) |
| ≥ 965 (38.000) to < 1422 (56.000) | — | ≥ 6.4 (0.250) to ≤ 52.0 (2.050) |
| ≥ 1422 (56.000) to < 1829 (72.000) | — | ≥ 9.5 (0.375) to ≤ 52.0 (2.050) |
| ≥ 1829 (72.000) to < 2134 (84.000) | — | ≥ 10.3 (0.406) to ≤ 52.0 (2.050) |
Aatir Steel’s Carbon Steel JIS G3454 Pipes find extensive use in industries that require robust and reliable piping solutions. They are perfect for mechanical structures, automotive parts, hydraulic systems, and pipelines that transport water, gas, or oil. In the construction realm, these pipes serve as scaffolding, frameworks, and structural supports. Their impressive mechanical strength, corrosion resistance, and ease of welding make them ideal for industrial plants, refineries, power generation facilities, and machinery. With their precise dimensions and ability to withstand pressure and temperature fluctuations, they are a go-to choice for projects demanding durability and reliability.
Aatir Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Cairo, Egypt.
