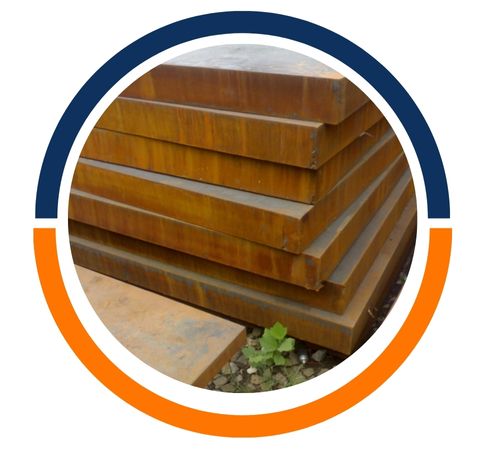

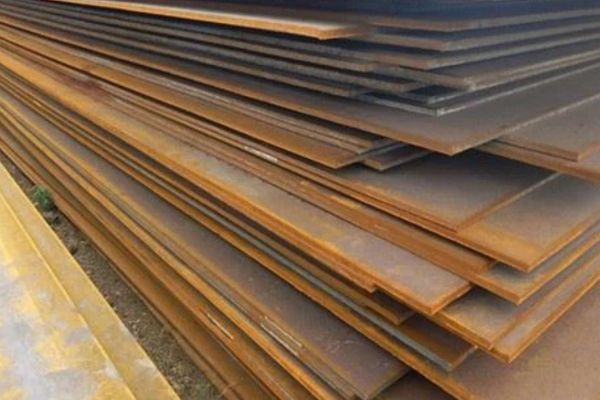

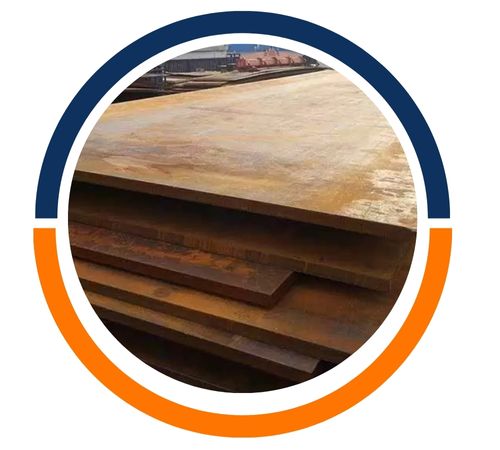

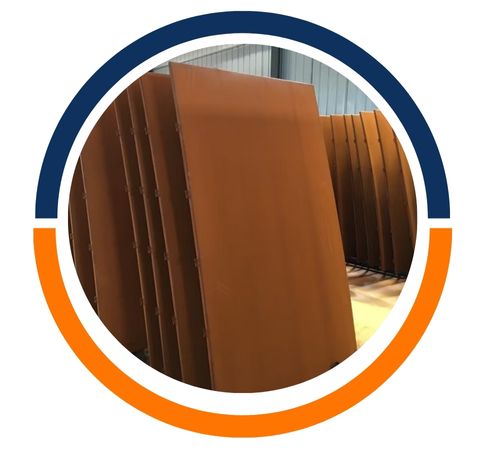

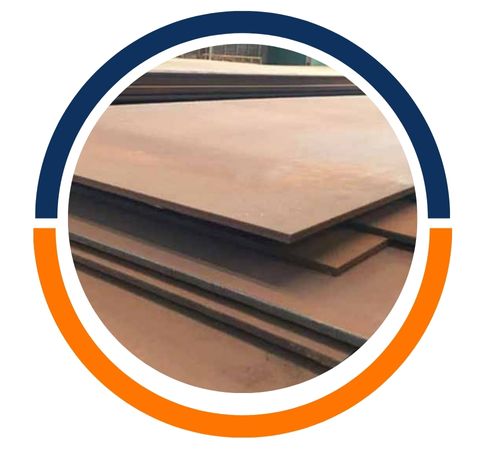

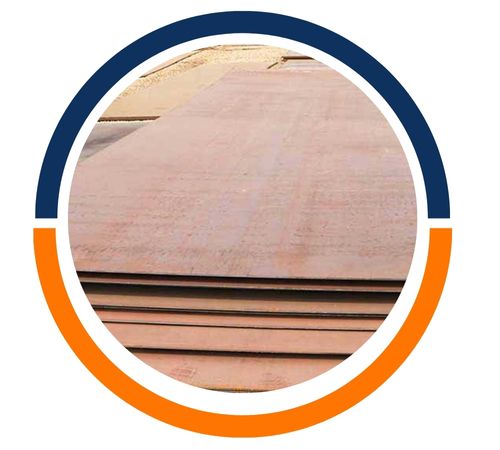

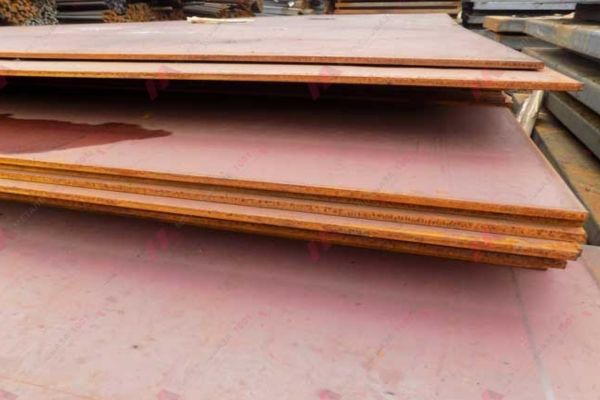

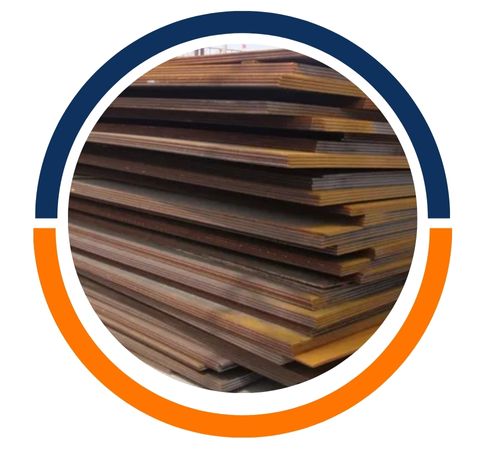

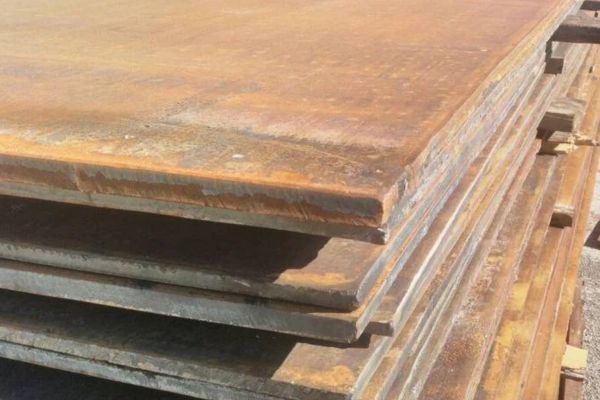

Aatir Steel stands out as a leading manufacturer and supplier of Corten Steel S355JOW Sheets and Plates, proudly based in Cairo, Egypt. Known for their high-performance weathering steel products, the company focuses on durability and exceptional corrosion resistance. When these sheets and plates are exposed to the elements, they develop a protective oxide layer that significantly reduces the need for painting and upkeep. Crafted with precision, Aatir Steel’s Corten Steel S355JOW offerings adhere to global quality standards, making them perfect for architectural, industrial, and structural projects that require both strength and visual appeal.
The composition of Corten Steel S355JOW Sheets and Plates includes Carbon (≤0.12%), Manganese (≤1.50%), Silicon (≤0.50%), Phosphorus (≤0.035%), Sulfur (≤0.030%), Copper (0.25–0.55%), and Chromium (0.40–0.80%). The presence of copper and chromium boosts corrosion resistance and helps form that self-protecting rust layer. These plates boast impressive mechanical properties, featuring a minimum yield strength of 355 MPa and a tensile strength that ranges from 470 to 630 MPa. They also provide excellent toughness and weldability, ensuring reliable performance even in challenging conditions.
Grade : S355JOW Corten Steel Plates
Standard : ASTM A588, A242 / ASME SA588, SA242
Width : 750mm to 1500mm,
Length : 2500mm to 12000mm
Thickness : 3MM to 50mm
Type : Corten Steel / High-Strength Low-alloy Structural Steel
Process : Hot-Rolled (HR)
|
Grade |
C |
Si |
Mn |
P |
S |
N |
Addition of nitrogen binding elements |
Cr |
Cu |
|
S355J0W |
0.16 |
0.50 |
0.50/1.50 |
0.035 |
0.035 |
0.009 |
– |
0.40/0.80 |
0.25/0.55 |
|
Grade |
Min. Yield Strength Reh MPa |
Tensile Strength Rm MPa |
|||||||
|
Nominal Thickness (mm) |
Nominal Thickness (mm) |
||||||||
|
≤16 |
>16 ≤40 |
>40 ≤63 |
>63 ≤80 |
>80 ≤100 |
>100 ≤150 |
>3 |
>3 ≤100 |
>100 ≤150 |
|
|
S355J0W |
355 |
345 |
335 |
325 |
315 |
295 |
510/680 |
470/630 |
450/600 |
Grade | Material # | EN 10155 | SEW 087 | NFA 35-502 | UNI | BS 4360 | ASTM | JISG3114 |
S355JOW | 1.8959 | S355J0W | – | E 36 WB 3 | Fe 510 C2K1 | WR 50 B | A588 – A242 Gr. 1 | SMA 50 AW |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Corten Steel S355JOW Sheets and Plates find their way into a variety of applications, including architecture, bridges, construction, railways, outdoor sculptures, chimneys, and industrial containers. Their natural weathering abilities mean there’s no need for painting, all while delivering a rustic, appealing finish. These plates excel in environments where moisture, air pollutants, and fluctuating weather conditions are present. Aatir Steel’s Corten Steel S355JOW products are a fantastic option for projects that require low maintenance, a long service life, and resistance to atmospheric corrosion, ensuring both strength and design excellence.
