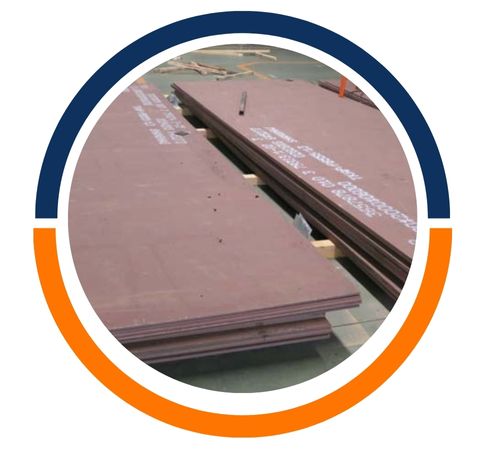

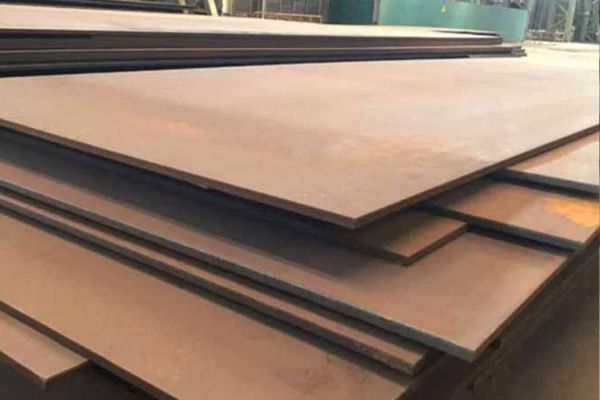

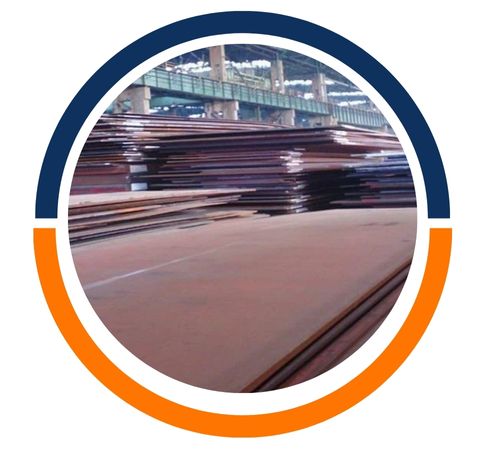

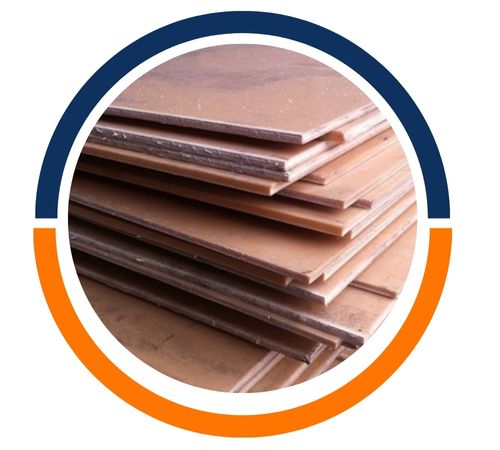

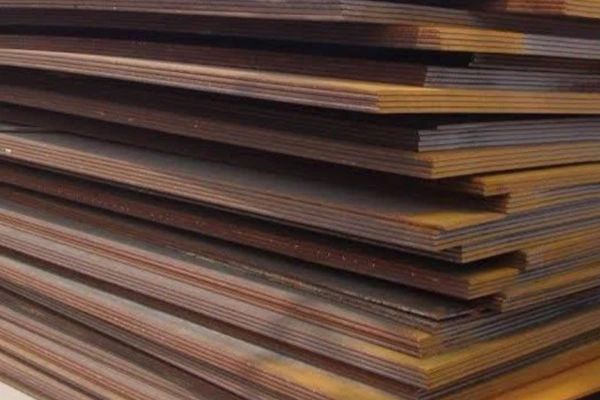

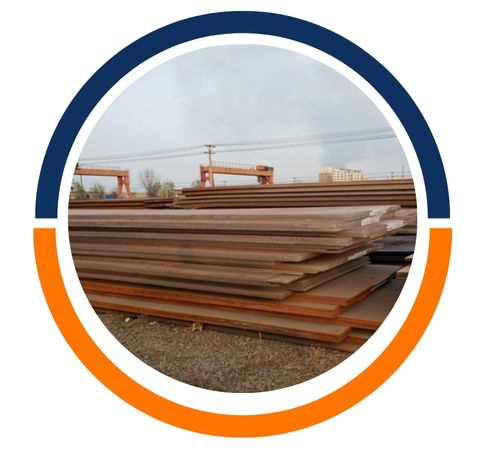

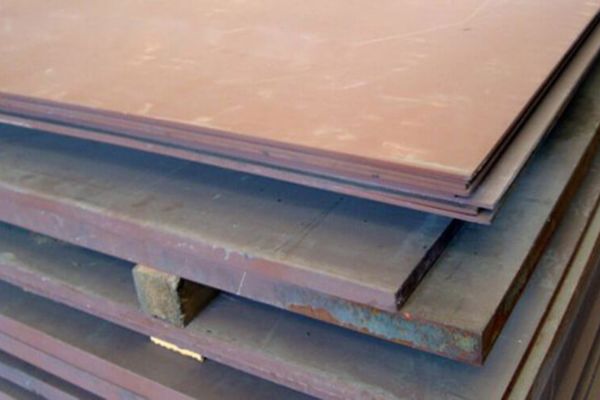

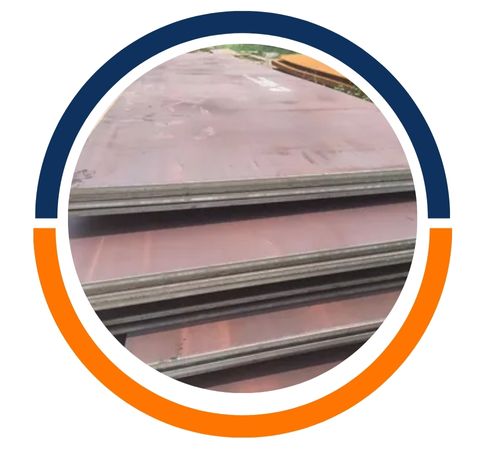

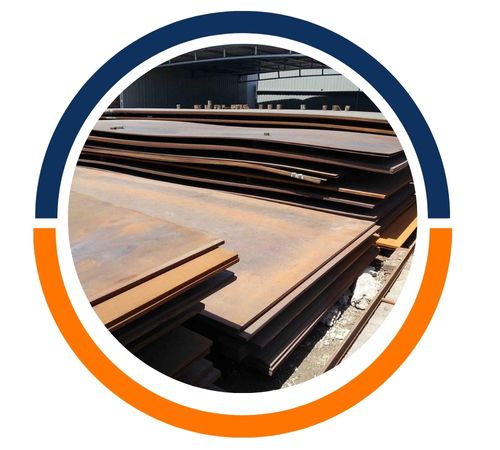

Aatir Steel stands out as a reliable manufacturer and supplier of 400 BHN Sheets and Plates right in Cairo, Egypt. We specialize in high-strength, abrasion-resistant steel products that are perfect for heavy-duty industrial applications. Our 400 BHN Sheets and Plates are celebrated for their remarkable hardness, durability, and wear resistance, making them a go-to choice for tough environments like mining, construction, and material handling. With cutting-edge technology and rigorous quality standards, Aatir Steel guarantees top-notch performance and precision in every single product. These plates are designed for longevity, requiring less maintenance, and they boast impressive toughness even in high-impact and abrasive conditions.
The composition of our 400 BHN Sheets and Plates includes carbon, manganese, silicon, chromium, and nickel, striking the perfect balance between hardness and strength. With a Brinell Hardness Number of 400, they deliver high tensile strength ranging from 1200 to 1450 MPa and a yield strength of around 1000 MPa. These plates are not only tough but also exhibit excellent impact resistance, weldability, and formability. The blend of alloying elements enhances their toughness and provides superior resistance to abrasion and wear, making them ideal for rugged and high-stress environments.
| Heat Treatment | Rolling/Normalised, N, Q+T |
|---|---|
| Width | 1000mm-4500mm |
| Thickness | 5mm-150mm |
| Length | 3000mm-18000mm |
| Production | Hot-Rolled (HR) |
| Surface Paint | PVDF, PE, HDP, SMP, EP |
| Plate | C | Si | Mn | P | S | Cr | Ni | Mo | B | CEV | CET |
| thickness mm | max % | max % | max % | max % | max % | max % | max % | max % | max % | typv | typv |
| 3- 6 | 0.15 | 0.70 | 1.60 | 0.025 | 0.01 | 0.50 | 0.25 | 0.25 | 0.004 | 0.41 | 0.28 |
| 3-（8） | 0.15 | 0.70 | 1.60 | 0.025 | 0.01 | 0.30 | 0.25 | 0.25 | 0.004 | 0.33 | 0.23 |
| 8 – 20 | 0.15 | 0.70 | 1.60 | 0.025 | 0.01 | 0.50 | 0.25 | 0.25 | 0.004 | 0.37 | 0.27 |
| （20）-32 | 0.18 | 0.70 | 1.60 | 0.025 | 0.01 | 1.00 | 0.25 | 0.25 | 0.004 | 0.48 | 0.29 |
| （32）-45 | 0.22 | 0.70 | 1.60 | 0.025 | 0.01 | 1.40 | 0.50 | 0.60 | 0.004 | 0.57 | 0.31 |
| （45）-51 | 0.22 | 0.70 | 1.60 | 0.025 | 0.01 | 1.40 | 0.50 | 0.60 | 0.004 | 0.57 | 0.38 |
| （51）-80 | 0.27 | 0.70 | 1.60 | 0.025 | 0.01 | 1.40 | 1.00 | 0.60 | 0.004 | 0.65 | 0.41 |
| （80）-130 | 0.32 | 0.70 | 1.60 | 0.025 | 0.01 | 1.40 | 1.50 | 0.60 | 0.004 | 0.73 | 0.48 |
| Yield Strength | Tensile Strength | Brinell Hardness | Elongation | Reduction of Area |
| 140,000 Psi | 180,000 Psi | 400BHN | 15% | 60% |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| 1/8″ | 3/8″ | 3/4″ | 1-1/2″ | 3″ |
| 3/16″ | 1/2″ | 1″ | 2″ | 4″ |
| 1/4″ | 5/8″ | 1-1/4″ | 2-1/2″ | |
| *1/8″ thick plate is available in one size only 60″x 120″. The 3/6″ thick plate is available only as 48″ x 144″ and 96″ x 144″. | ||||
| Thickness | Width | Length |
| 4 | 2000 | 6000 |
| 5 | 2000 | 6000 |
| 6 | 2000 | 6000 |
| 6 | 2500 | 6000 |
| 8 | 2000 | 6000 |
| 8 | 2500 | 6000 |
| 10 | 2000 | 6000 |
| 12 | 2000 | 6000 |
| 15 | 2000 | 6000 |
| 16 | 2000 | 6000 |
| 20 | 2000 | 6000 |
| 25 | 2000 | 6000 |
| 32 | 2000 | 6000 |
| 40 | 2000 | 6000 |
| 50 | 2000 | 6000 |
| 60 | 1800 | 3400 |
Aatir Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Cairo, Egypt.
