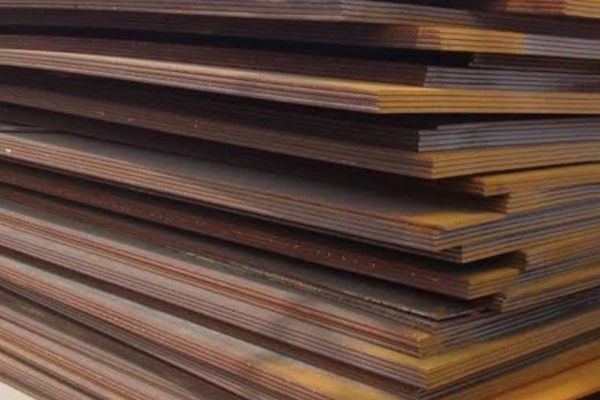

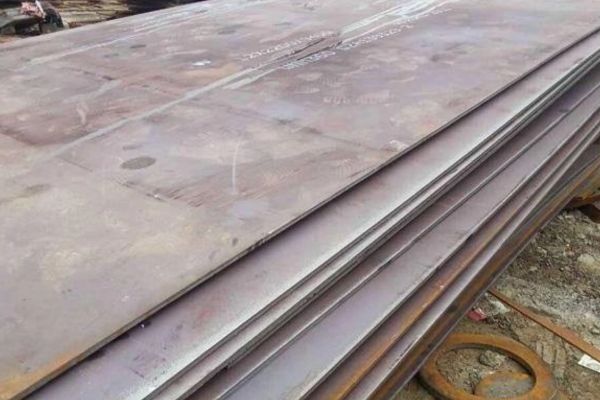

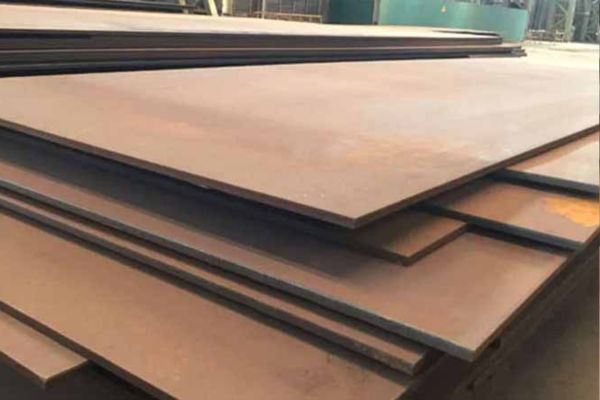

Aatir Steel is one of the leading manufacturers and suppliers of NICRODUR 500 sheets and plates in Cairo, Egypt. We are known for our dedication to quality and innovation. We supply high-strength, wear-resistant steel solutions to sectors such as mining, construction, and material handling. Our NICRODUR 500 sheets and plates exhibit outstanding durability, impact resistance, and longer service life, thereby being suitable for heavy-duty uses. Here at Aatir Steel, we value customer satisfaction, providing steel products of the highest quality that exceed stringent industry standards for reliability and performance.
NICRODUR 500 plates and sheets consist of high-carbon alloy steel containing additives such as manganese, chromium, and boron to increase hardness and resistance to wear. They possess superior mechanical properties such as a hardness of approximately 500 HBW, high tensile strength, and improved impact resistance. Such properties find application in heavy-duty work such as in mining, construction, and material handling. Benefits are longer service life, less maintenance cost, and better performance in harsh conditions, so they are often the go-to option for abrasion-resistant service.
Item: NICRODUR 500
Thickness : 5mm to 150mm
Length : 6,000mm to 12,000mm
Width : 1,500mm to 2,500mm
Heat Treatment: N, Q+T
Surface Point : EP, PE, HDP, SMP, PVDF
| Plate Thickness [mm] | C max | Si max | Mn max | S max | P max | Cr max | Ni max | Mo max | B max | CEV max | |
| 8 – 25 | 0,28 | 1,0 | 1,5 | 0,002 | 0,012 | 1,0 | 0,5 | 0,5 | 0,005 | 0,61 | |
| (20) – 40 | 0,32 | 1,0 | 1,5 | 0,002 | 0,012 | 1,1 | 0,5 | 0,5 | 0,005 | 0,71 | |
| (40) – 60 | 0,34 | 1,0 | 1,5 | 0,002 | 0,012 | 1,2 | 0,7 | 0,5 | 0,005 | 0,76 | |
| (60) – 80 | 0,40 | 1,0 | 1,5 | 0,002 | 0,012 | 1,5 | 1,0 | 0,5 | 0,005 | 0,81 |
| Yield strength(minimal), Re [MPa] | Tensile strength, Rm [MPa] | Elongation (minimal), A5 [%] | |
| NICRODUR 500 | 1500 | 1800 | 9 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| 1/8″ | 3/8″ | 3/4″ | 1-1/2″ | 3″ |
| 3/16″ | 1/2″ | 1″ | 2″ | 4″ |
| 1/4″ | 5/8″ | 1-1/4″ | 2-1/2″ | |
| *1/8″ thick plate is available in one size only 60″x 120″. The 3/6″ thick plate is available only as 48″ x 144″ and 96″ x 144″. | ||||
| Thickness | Width | Length |
| 4 | 2000 | 6000 |
| 5 | 2000 | 6000 |
| 6 | 2000 | 6000 |
| 6 | 2500 | 6000 |
| 8 | 2000 | 6000 |
| 8 | 2500 | 6000 |
| 10 | 2000 | 6000 |
| 12 | 2000 | 6000 |
| 15 | 2000 | 6000 |
| 16 | 2000 | 6000 |
| 20 | 2000 | 6000 |
| 25 | 2000 | 6000 |
| 32 | 2000 | 6000 |
| 40 | 2000 | 6000 |
| 50 | 2000 | 6000 |
| 60 | 1800 | 3400 |
